| Printing Method |
Direct Thermal & Thermal Transfer |
| Printing Resolution |
203 dpi (8 dots/mm) |
| Printing Speed |
Max. 6 ips |
| Printing Length |
Max. 100”(2540 mm) |
| Printing Width |
Max. 6.6”(168 mm) |
| Memory |
128MB DRAM, 128MB Flash ROM (USB storage up to 32GB) |
| CPU Type |
32 bit RISC microprocessor |
| Sensors |
Reflective sensor x 1 (Movable) & Transmissive sensor x 1 (Movable) |

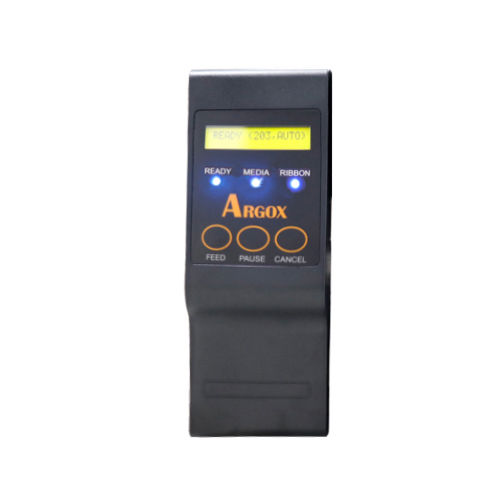

| Operation Interface |
LED Indicator x 3, Button x 3, LCD Display x 1 |

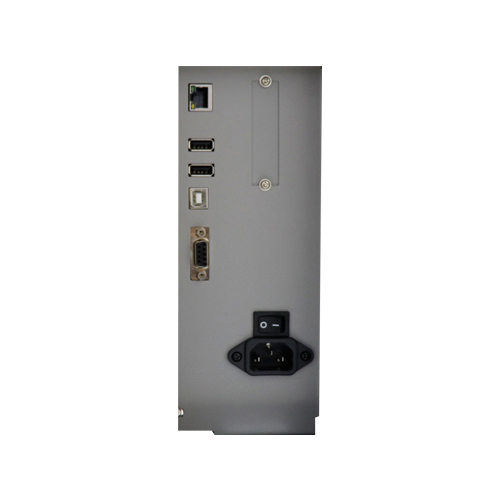

| Communication Interface |
USB device, RS-232, Ethernet, USB host x 2 |
| Fonts |
Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23”H (1.25mm ~ 6.0mm). Internal fonts are expandable up to 24×24 4 direction 0° ~ 270° rotation. Soft fonts are downloadable. Ability to print any Windows True Type font easily. Support scalable font. GB 18030 Standard (Chinese coded character set) |
| Wireless Security |
N/A |
| 1D Barcodes |
PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS)
PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2/5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、Industrial 2 of 5、 Standard 2 of 5、 Logmars |
| 2D Barcodes |
QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode |
| Graphics |
PPLA: PCX, BMP, IMG, HEX, GDI / PPLB: PCX, BMP, Binary raster, GDI / PPLZ: GRF, Hex, GDI |
| Emulation |
PPLA, PPLB, PPLZ, Auto |
| Database Link |
ArgoBar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) |
| Software |
BarTender, ArgoBar Pro, Printer Tool, Font Utility, iLabelPrint+ |
| Drivers |
Windows Driver Win10/Win11, LINUX Driver, macOS Driver, Raspberry Pi Driver |
| Media Type |
Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper |
| Media |
Max. width: 6.8”(173mm). Min. width: 2”(50.8mm). Thickness: 0.0025”~0.01”(0.0635mm~0.254mm)
8.26”(210mm) OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core |
| Ribbon |
Max. width: 6.78”(172mm) Min. width: 2″(50.8mm). Length: max 450m Wax, Max OD 3.2”(81.3mm).
Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) |
| Drop Resistance |
N/A |
| Printer Dimensions |
W 318 mm x H 262 mm x D 470 mm |
| Printer Weight |
31lbs (14 kg) |
| Power Source |
Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz |
| Battery |
N/A |
| Operation Environment |
Operation Temperature: 40°F~104°F (4°C~40°C), 25% ~ 85% non-condensing
Storage Temperature: -4°F~122°F (-20°C~50°C), 10% ~ 90% non-condensing |
| Real Time Clock |
N/A |
| Optional Items |
Cutter, Peeler, WLAN, GPIO, Internal rewinder, External rewinder |
| Agency Listing |
CE, CB/LVD, FCC, BSMI, CCC |
| Attention |
*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. |
