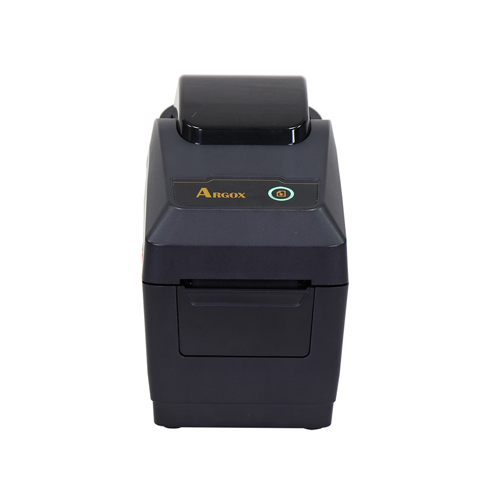

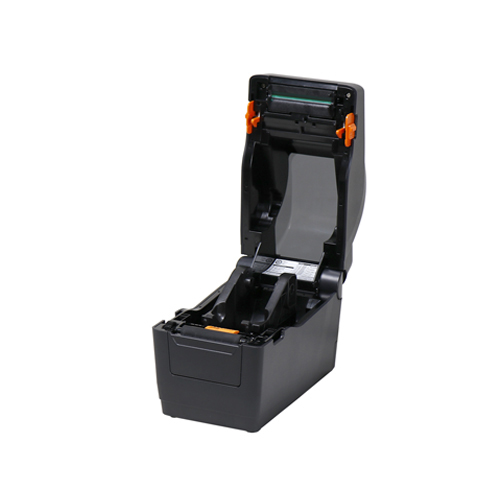

The D2 Pro series features a user-friendly clamshell design that allows users to simply open the cover and loading media.Small footprint design, the compact D2 Pro series fits into tight spaces and supports a wide range of applications.The D2 Pro series has built-in USB host, USB device, and it can be expanded with Ethernet/RS232, Wi-Fi, Bluetooth v4.2.
| Printing Method | Direct Thermal |
| Printing Resolution | 203 dpi (8 dots/mm) |
| Printing Speed | Max. 7 ips |
| Printing Length | Max. 100”(2540 mm) |
| Printing Width | Max. 2.13”(54 mm) |
| Memory | 128MB SDRAM, 128MB Flash ROM |
| CPU Type | 32 bit RISC microprocessor |
| Sensors | Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset) |
| Operation Interface | LED Indicator x 2, Button(Feed) x 1 |

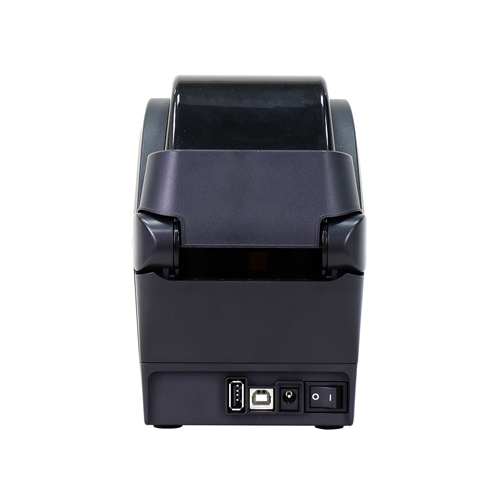

| Communication Interface | USB device, USB host |
| Fonts | Internal character sets standard, 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation. Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font. GB 18030 Standard (Chinese coded character set) support. |
| Wireless Security | N/A |
| 1D Barcodes | PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars |
| 2D Barcodes | MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec |
| Graphics | PPLA: PCX, BMP, IMG, HEX, GDI / PPLB: PCX, BMP, Binary Raster, GDI / PPLZ: GRF, HEX, GDI |
| Emulation | PPLA, PPLB, PPLZ, Auto |
| Database Link | ArgoBar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) |
| Software | BarTender, Printer Tool, Font Utility, iLabelPrint+ |
| Drivers | Windows Driver Win10/Win11, LINUX Driver, macOS Driver, Raspberry Pi Driver |

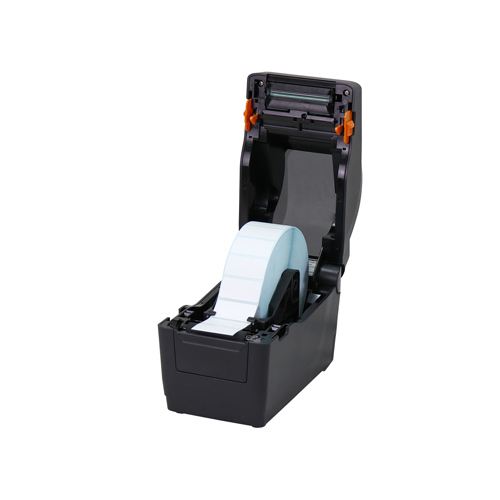

| Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper |
| Media | Max. width 60mm. Min. width 12mm. Media thickness: 0.06~0.2mm 5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; 4.5”(114mm) OD on a 0.5” (12.7mm) ID core. |
| Ribbon | N/A |
| Drop Resistance | N/A |
| Printer Dimensions | W 116mm x H 170mm x D 215mm |
| Printer Weight | 2.31 lbs (1.05 kg) |
| Power Source | Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A |
| Battery | N/A |
| Operation Environment | Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) |
| Real Time Clock | N/A |
| Standard Item | N/A |
| Optional Items | Full/partial cutter guillotine-type, Peeler, WLAN, Bluetooth v4.2, RS-232, Ethernet |
| Agency Listing | CE, FCC, IC, CB, UL, RoHs ,CCC |
| Attention | *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. |
