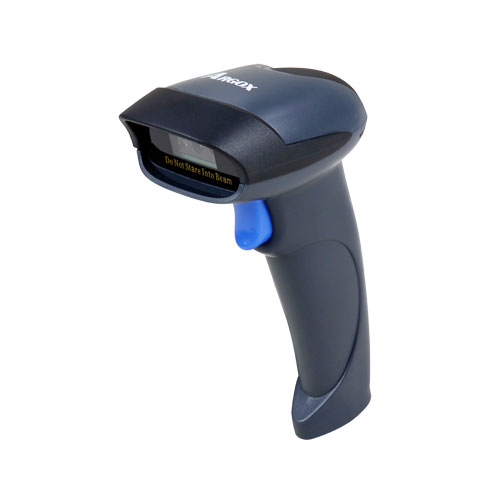

Argox AS-9400BT

Product Description

Various codes support, including GS1 Data Matrix (UDI) in healthcare
Resolution: 3mil (1D code 39); 7.5mil (QR code)
Bluetooth dual mode (BLE & Classic BT5.0+EDR)
Full charged in 4 hours (charging by power adapter)
Auto-sensing support (automatically switch on the cradle)
Easy to connect scanner with any Android/iOS/PC device

AS-9400BT, an ideal Bluetooth 2D barcode scanner to fit variety of applications.

1. Various codes support, including GS1 Data Matrix (UDI) in healthcare
2. Resolution: 3mil (1D code 39); 7.5mil (QR code)
3. Bluetooth dual mode (BLE & Classic BT5.0+EDR)
4. Full charged in 4 hours (charging by power adapter)
5. Using Type-C cable can quickly replacement of cable loss or damage temporarily in local.
6. Auto-sensing support (automatically switch on the cradle)
7. Easy to connect scanner with any Android/iOS/PC device

Application

Retail
Manufacturing
Transportation & Logistics
Library & Office
Healthcare

Categories: Barcode, Barcode Scanner

Description
Reviews (0)

Description

Light Source	630nm visible red LED
Image Sensor	640x 480 array image sensor
Depth of Field	Code 39 40mm~165mm(5mil) Ean-13 50mm~365mm(13mil) Data Matrix 35mm~115mm(10mil) QR Code 35mm-145mm (15mil) PDF 417 45mm-115mm(6.67mil)
Resolution	1D ≥ 3 mil (Code 39) 2D ≥ 7.5mil (QR Code)
Print Contrast Ratio (minimum)	≧25%
Decode Capability	1D: Code11, Code39, Code93, Code32 (Pharmaceutical), Code128 (GS1-128), ISBT-128, Codabar (NW7), Interleaved 2of 5, Industrial 2 of 5, Discrete 2 of 5 (DTF), IATA 2 of 5, Matrix 2of 5, EAN/JAN-13, plus supplement, EAN/JAN-8, plus supplement, UPCA, plus supplement, UPCE, plus supplement, UPCE1, ISBN (Bookland), MSI PlesseyCode, GS1 Databar RSS14, GS1 Databar Limited, GS1 Databar Omnidirectional,GS1 Databar Expanded 2D: GS1 Databar Expanded Stacked, GS1 Databar RSS14 Stacked, PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C/CC-B, CC-C), Aztec, MaxiCode, DataMatrix/ECC 200, QR Code, Micro QR Code, GS1 DataMatrix
Wireless Communications	Bluetooth Dual mode (BLE & Classic BT5.0+EDR)
Communication Interface	USB-HID, USB-Virtual COM, RS-232
Scan Indicators	LED, Beeper
Scanner Dimensions	90mm x 60mm x 160mm
Cradle Dimensions	110mm x 74mm x 36mm
Input Voltage	5V±5%
Operating Temperature	-10°C-45°C
Storage	-20°C-60°C
Humidity	5%-85%
Ambient Light	Up to 100000 lux
Battery	2000mAh
Drop Resistance	1.5m (No malfunction)
Programming Method	Standard: User Manual setting barcode
Operation Mode	Tigger mode, Auto sensing mode, Continuous mode
Sealing	IP41
Program Upgrade	Enabled by build-in flash memory (Field Upgrade)
Cable Length	1.5m
Scanner Stand	N/A
Power Supply	N/A
Agency Listing	CE, FCC, BSMI, RoHS, etc.
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
